| Part number: | KSL0M312LFT |

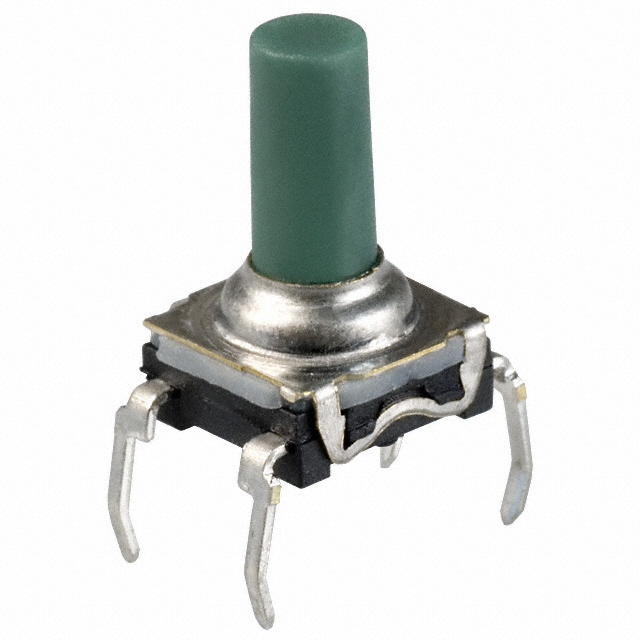

| Description: | SWITCH TACTILE SPST-NO 0.05A 32V |
| Manufacturer | Littelfuse / C&K |
| Encapsulation | Bulk |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / C&K" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -40°C ~ 90°C |
| Termination Style | PC Pin |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.05A @ 32VDC |
| Actuator Type | Standard |
| Operating Force | 130gf |
| Outline | 7.40mm x 7.40mm |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Actuator Height off PCB, Vertical | 9.90mm |
| Actuator Orientation | Top Actuated |
|
