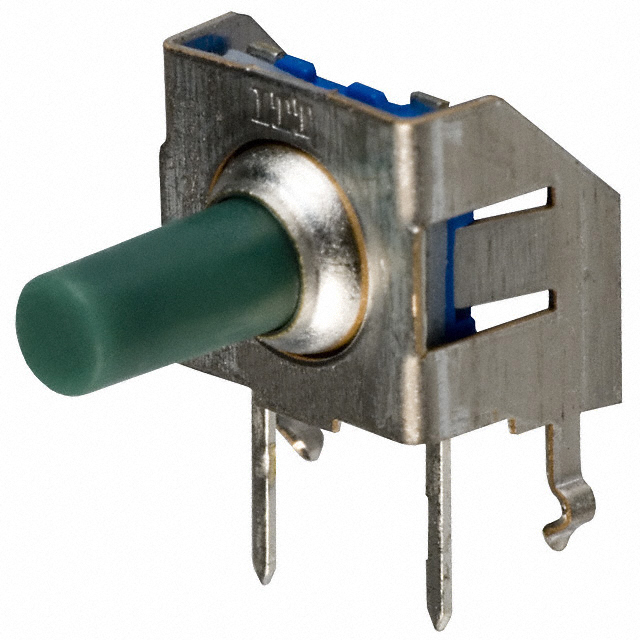

| Part number: | KSL0V311LFT |
| Description: | SWITCH TACTILE SPST-NO 0.05A 32V |
| Manufacturer | Littelfuse / C&K |
| Encapsulation | Bulk |
| Quantity | 250 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / C&K" |
| Mounting Type | Through Hole, Right Angle |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -40°C ~ 90°C |
| Termination Style | PC Pin |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.05A @ 32VDC |
| Actuator Type | Standard |
| Operating Force | 130gf |
| Outline | 8.00mm x 8.00mm |
| Ingress Protection | IP60 - Dust Tight |
| Actuator Orientation | Side Actuated |
| Actuator Length, Right Angle | 8.53mm |
|
