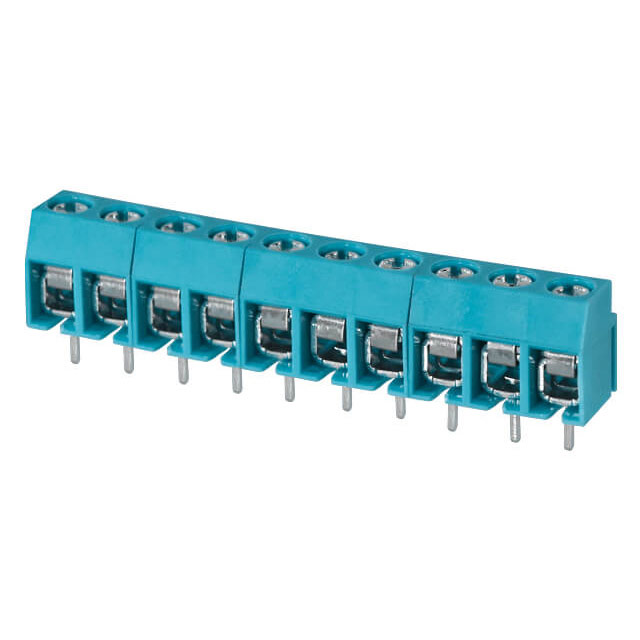

| Part number: | TB003-500-P10BE |
| Description: | TERMINAL BLOCK, SCREW TYPE, 5.00 |
| Manufacturer | CUI Devices |
| Encapsulation | Box |
| Quantity | 740 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "CUI Devices" |
| Features | Interlocking (Side) |
| Color | Blue |
| Mounting Type | Through Hole |
| Wire Gauge | 14-26 AWG |
| Pitch | 0.197" (5.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Mating Orientation | Horizontal with Board |
| Positions Per Level | 10 |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Clamp Material - Plating | Steel, Stainless |
| Screw Material - Plating | Steel - Zinc Plated |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) |
| Screw Thread | M2.5 |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
| Current | 10 A |
| Number of Levels | 1 |
| Voltage | 300 V |
|
