| Part number: | CRD16CM0SBR |

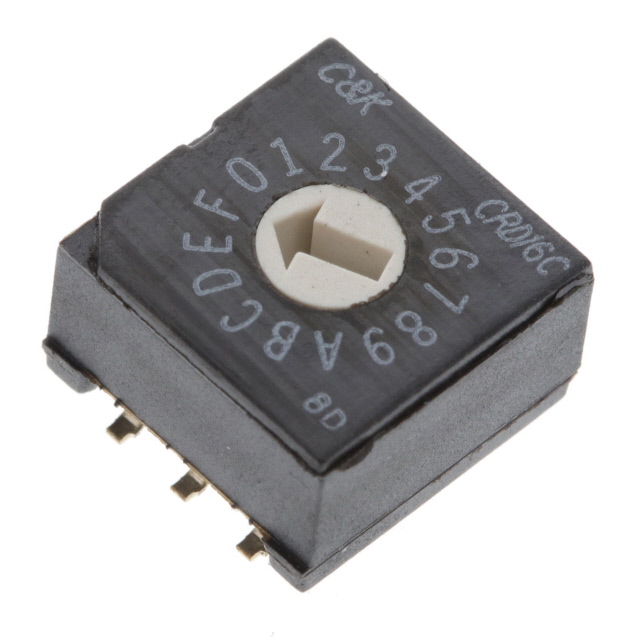

| Description: | SW ROTARY DIP HEX COMP 0.4VA 20V |
| Manufacturer | Littelfuse / C&K |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / C&K" |
| Features | Process Sealed |
| Contact Finish | Gold |
| Voltage Rating | 20VAC/DC |
| Current Rating (Amps) | 0.4VA |
| Mounting Type | Surface Mount |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | Hexadecimal Complement |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | Gull Wing |
| Actuator Type | Rotary for Tool |
| Height Above Board | 0.271" (6.88mm) |
| Actuator Level | Flush, Recessed |
| Washable | Yes |
| Contact Material | Beryllium Copper |
| Number of Positions | 16 |
|
