| Part number: | A-CSL-S-020-B7-A |

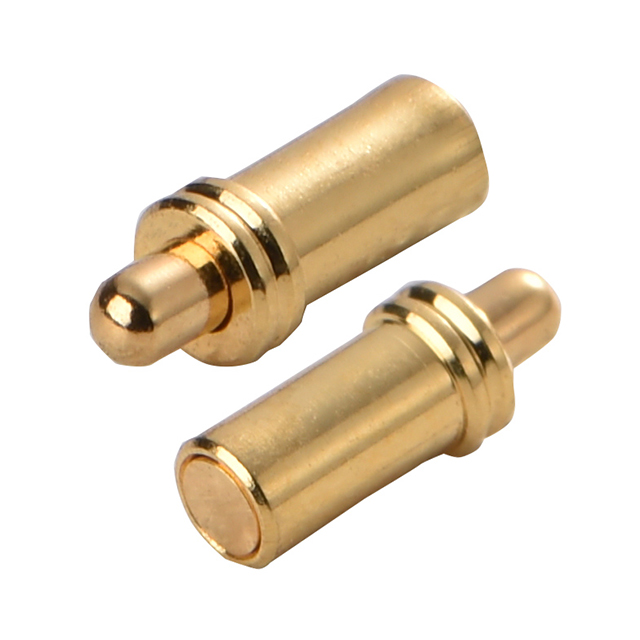

| Description: | CONN PIN SPRING LOAD 5.207MM AU |
| Manufacturer | ASSMANN WSW Components |
| Encapsulation | Bulk |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ASSMANN WSW Components" |
| Contact Finish | Gold |
| Current Rating (Amps) | 2A |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Contact Material | Brass |
| Mating Cycles | 1000000 |
| Maximum Working Height | 0.205" (5.21mm) |
| Recommended Working Height | 0.177" (4.50mm) |
| Minimum Working Height | 0.150" (3.81mm) |
| Pad Layout Dimension | Circular - 0.078" (1.98mm) (TH) |
| Plunger Size | 0.042" (1.07mm) Dia |
| Operating Force - Initial | 60gf |
|
