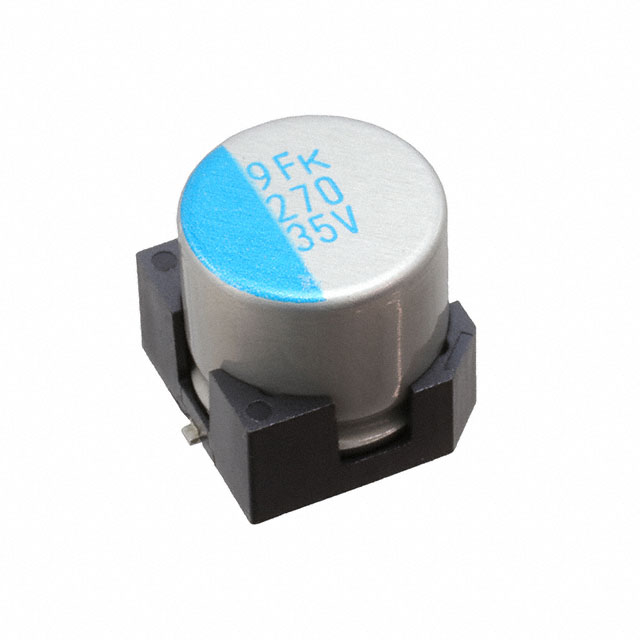

| Part number: | HTK-35V271MH10E-R2 |
| Description: | CAP ALUM HYB 270UF 20% 35V SMD |
| Manufacturer | Elna America |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Elna America" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Mounting Type | Surface Mount |
| Type | Hybrid |
| Operating Temperature | -55°C ~ 125°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 6000 Hrs @ 125°C |
| Surface Mount Land Size | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Capacitance | 270 µF |
| Voltage - Rated | 35 V |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
|
