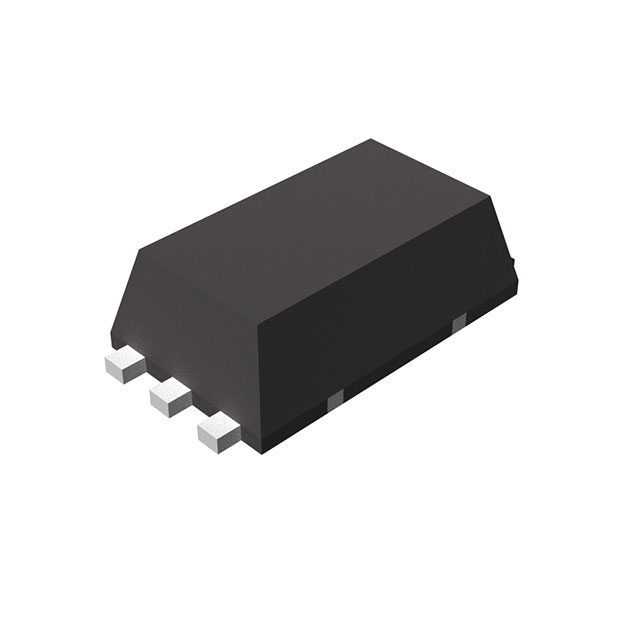

| Part number: | R1211D100A-TR-FE |
| Description: | PWM STEP-UP DCDC CONTROLLER |
| Manufacturer | RICOH/Nisshinbo Micro Devices |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "RICOH/Nisshinbo Micro Devices" |
| Package / Case | 6-SMD, Flat Leads |
| Output Type | PWM |
| Mounting Type | Surface Mount |
| Function | Step-Up |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Frequency - Switching | 700kHz |
| Topology | Boost |
| Voltage - Supply (Vcc/Vdd) | 2.5V ~ 6V |
| Supplier Device Package | 6-SON (2.6x1.6) |
| Synchronous Rectifier | No |
| Control Features | Enable |
| Output Phases | 1 |
| Duty Cycle (Max) | 90% |
| Clock Sync | No |
| Number of Outputs | 1 |
|
