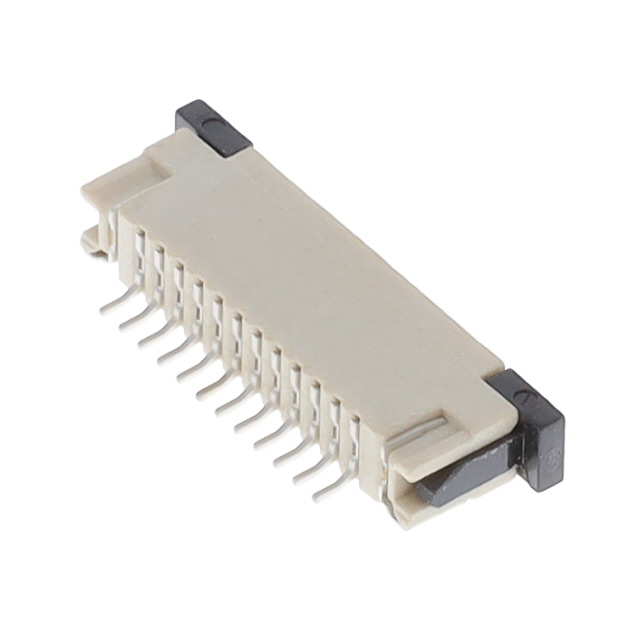

| Part number: | ZF1-12-02-T-WT |
| Description: | CONN FFC TOP 12POS 1MM R/A |
| Manufacturer | Samtec, Inc. |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Samtec, Inc." |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Contact Finish | Tin |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 12 |
| Pitch | 0.039" (1.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Termination | Solder |
| Height Above Board | 0.118" (3.00mm) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-2 |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Straight |
| Housing Color | Natural |
| Actuator Color | Black |
| Flat Flex Type | FFC |
| Connector/Contact Type | Contacts, Top |
|
