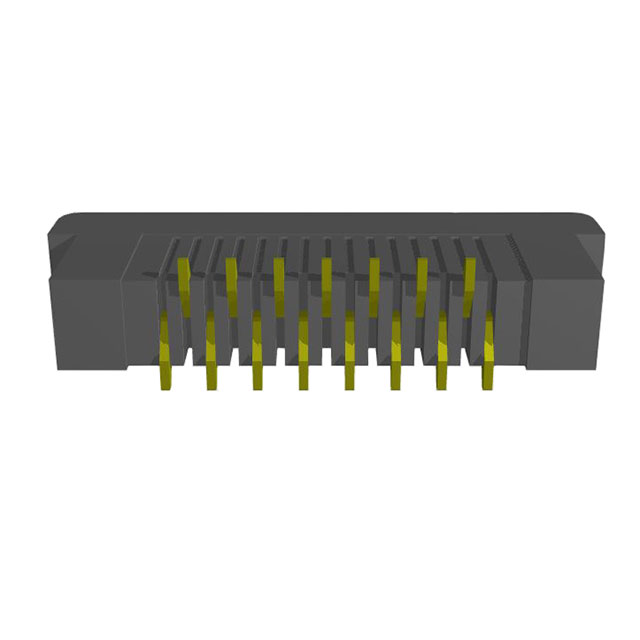

| Part number: | ZF5S-15-03-T-WT-TR |
| Description: | CONN FFC VERT 15POS 0.5MM SMD |
| Manufacturer | Samtec, Inc. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 975 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Samtec, Inc." |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Contact Finish | Tin |
| Current Rating (Amps) | 1.8A per Contact |
| Mounting Type | Surface Mount |
| Number of Positions | 15 |
| Pitch | 0.020" (0.50mm) |
| Operating Temperature | -55°C ~ 105°C |
| Termination | Solder |
| Height Above Board | 0.192" (4.87mm) |
| Locking Feature | Slide Lock |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Straight |
| Housing Color | Natural |
| Actuator Color | Black |
| Flat Flex Type | FFC |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
|
