| Part number: | 74ABT20D,112 |
| Description: | IC GATE NAND 2CH 4-INP 14SO |
| Manufacturer | Nexperia |
| Encapsulation | Tube |
| Quantity | 57 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nexperia" |

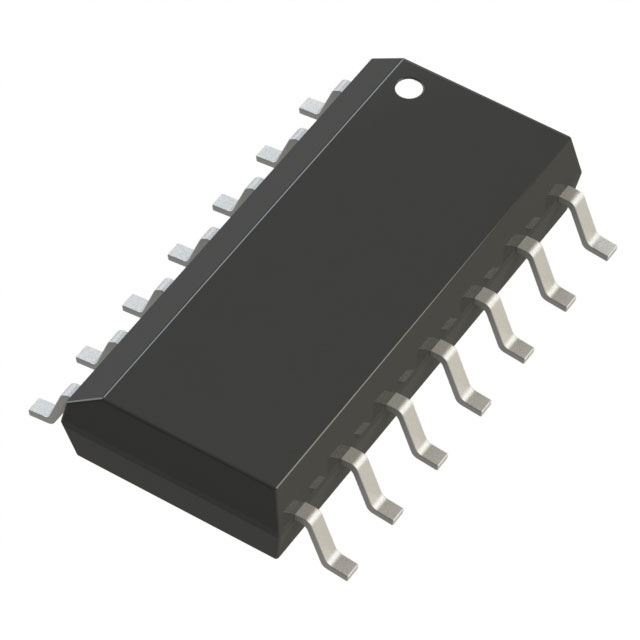

| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 15mA, 20mA |
| Number of Inputs | 4 |
| Supplier Device Package | 14-SO |
| Input Logic Level - High | 2V |
| Input Logic Level - Low | 0.8V |
| Max Propagation Delay @ V, Max CL | 3.9ns @ 5V, 50pF |
| Number of Circuits | 2 |
| Current - Quiescent (Max) | 50 µA |
|
