| Part number: | S1W0-2835358003-0000003S-0P006 |

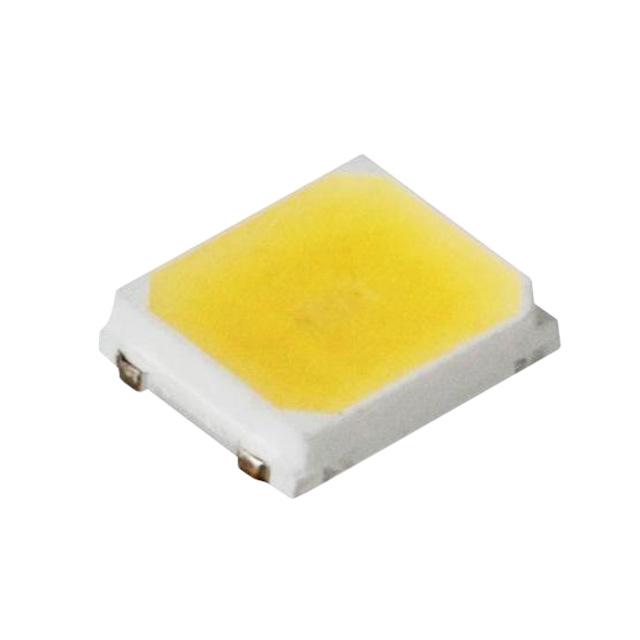

| Description: | LED 3528 WARM WHT 3500K SMD |
| Manufacturer | Seoul Semiconductor |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 16000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Seoul Semiconductor" |
| Package / Case | 1411 (3528 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.130" L x 0.110" W (3.30mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.72V |
| Current - Test | 65mA |
| Viewing Angle | 120° |
| Current - Max | 200mA |
| Supplier Device Package | 3528 |
| Lumens/Watt @ Current - Test | 200 lm/W |
| Height - Seated (Max) | 0.035" (0.90mm) |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 35lm (Typ) |
| Thermal Resistance of Package | 13°C/W |
|
