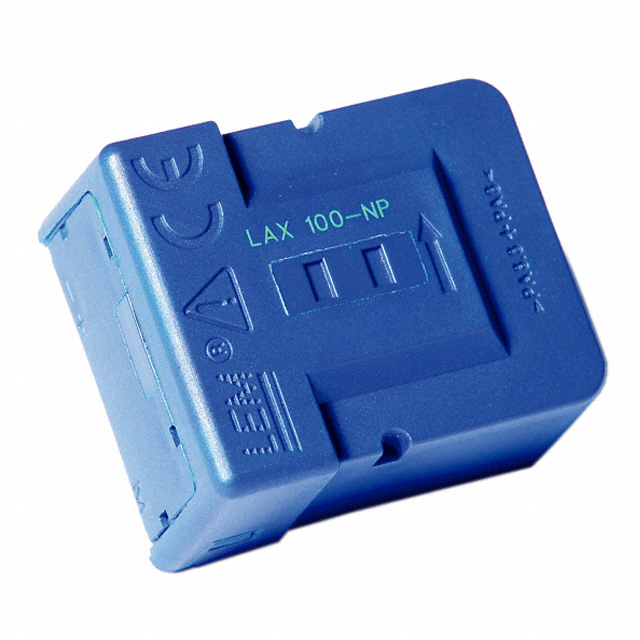

| Part number: | LAX 100-NP |
| Description: | SENSOR CURRENT HALL SELECTABLE |
| Manufacturer | LEM USA, Inc. |
| Encapsulation | Tube |
| Quantity | 12 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "LEM USA, Inc." |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | 0.5mA/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Current |
| Frequency | DC ~ 300kHz |
| Accuracy | ±0.91% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±11.4V ~ 15.75V |
| Response Time | 0.2µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 62mA |
| Current - Sensing | 16.7A, 25A, 33.3A, 50A, 100A (Selectable) |
| Number of Channels | 1 |
|
