| Part number: | 0830CDMCCDS-4R7MC |

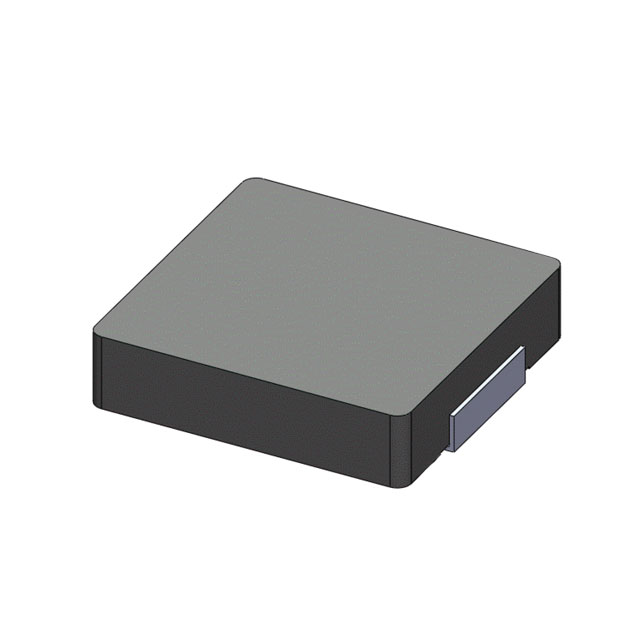

| Description: | FIXED IND 4.7UH 6.5A 31 MOHM SMD |
| Manufacturer | Sumida Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sumida Corporation" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.319" L x 0.307" W (8.10mm x 7.80mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 31mOhm Max |
| Current - Saturation (Isat) | 8.6A |
| Material - Core | Metal |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Inductance | 4.7 µH |
| Current Rating (Amps) | 6.5 A |
|
