| Part number: | GC1513 - 8085 |

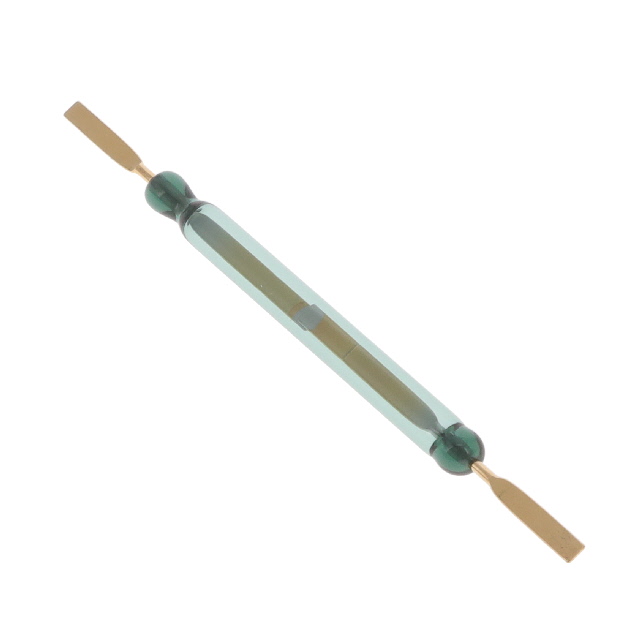

| Description: | SWITCH REED SPST-NO 3A 1500V |
| Manufacturer | Comus International |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Comus International" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Axial, Flat |
| Length - Overall | 3.110" (79.00mm) |
| Power - Rated | 120W |
| Current - Switching | 3A (AC/DC) |
| Voltage - Switching DC | 1500 V |
| Operate Time | 4 ms |
| Release Time | 0.2 ms |
| Size - Body | 0.213" Dia x 2.047" L (5.40mm x 52.00mm) |
| Operate Range | 80 ~ 85AT |
| Release Range | 30AT |
| Current - Carry | 5A (AC/DC) |
| Voltage - Switching AC | 1500 V |
| Capacitance | 0.8 pF |
|
