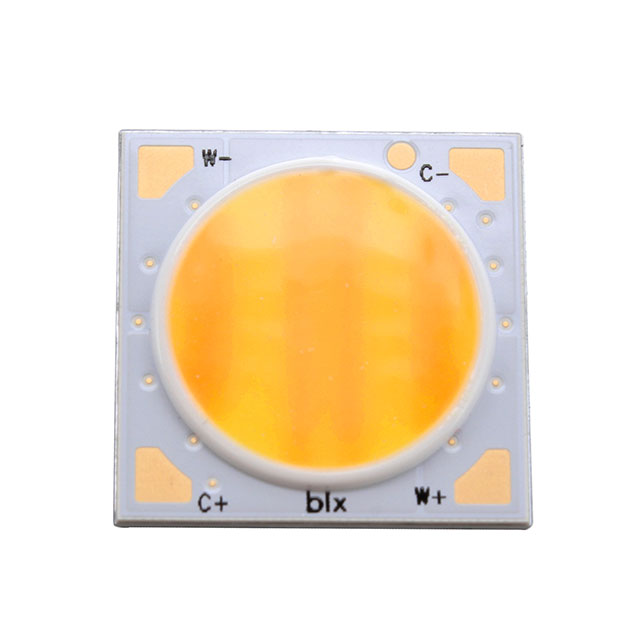

| Part number: | BXRV-TR-2750G-1KA0-A-23 |
| Description: | LED COB VESTA WHITE SQUARE 3850K |
| Manufacturer | Bridgelux, Inc. |
| Encapsulation | Tube |
| Quantity | 24 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bridgelux, Inc." |
| Color | White, Warm / White, Cool |
| Size / Dimension | 32.05mm L x 32.05mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 52.4V |
| Height | 1.65mm |
| Current - Test | 1.05A |
| Viewing Angle | 130° |
| Lens Type | Flat |
| Current - Max | 1.8A |
| Lumens/Watt @ Current - Test | 125 lm/W |
| CCT (K) | 3850K (2700K ~ 5000K) 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 92 |
| Light Emitting Surface (LES) | 29.60mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 6878lm (Typ) |
|
