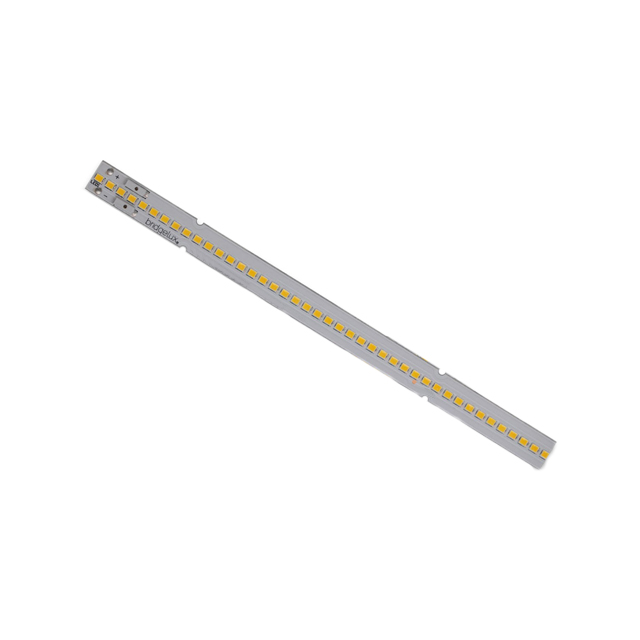

| Part number: | BXEB-L1190U-35E3000-C-C3 |
| Description: | LED MOD EB SER WH LNR STRP 3500K |
| Manufacturer | Bridgelux, Inc. |
| Encapsulation | Tray |
| Quantity | 180 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bridgelux, Inc." |
| Features | With Connector |
| Color | White, Warm |
| Size / Dimension | 1190.00mm L x 12.70mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 38.2V |
| Height | 4.30mm |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.7A |
| Lumens/Watt @ Current - Test | 186 lm/W |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 4980lm (Typ) |
|
