| Part number: | PRO-IS-589 |

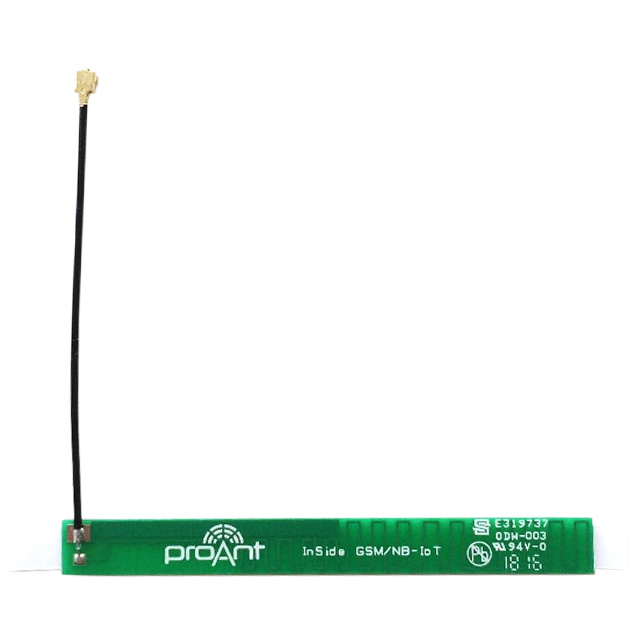

| Description: | INSIDE GSM/NB-IOT ADHESIVE MHF4 |
| Manufacturer | Abracon |
| Encapsulation | Bag |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Abracon" |
| Features | Cable - 60mm |
| Mounting Type | Adhesive |
| Frequency Range | 791MHz ~ 960MHz, 1.71GHz ~ 1.88GHz |
| Applications | EDGE, GPRS, GSM, LTE, UMTS |
| Gain | 4dBi |
| Termination | IPEX MHF4 |
| Number of Bands | 2 |
| Antenna Type | PCB Trace |
| Height (Max) | 0.031" (0.80mm) |
| Return Loss | -4dB, 5dB |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 875.5MHz, 1.795GHz |
| RF Family/Standard | Cellular |
|
