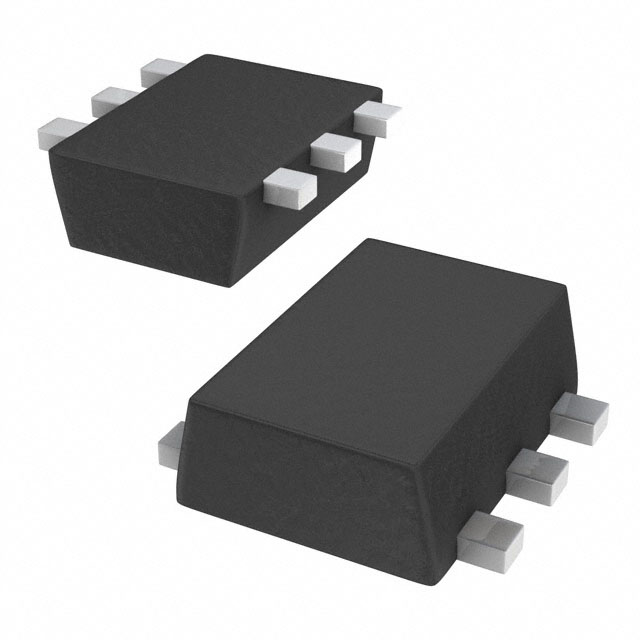

| Part number: | SSM6N24TU,LF |
| Description: | MOSFET 2N-CH 30V 0.5A UF6 |
| Manufacturer | Toshiba Electronic Devices and Storage Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Toshiba Electronic Devices and Storage Corporation" |
| Package / Case | 6-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | 150°C |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 500mW (Ta) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 245pF @ 10V |
| Rds On (Max) @ Id, Vgs | 145mOhm @ 500mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 100µA |
| Supplier Device Package | UF6 |
|
