| Part number: | 37400800410 |

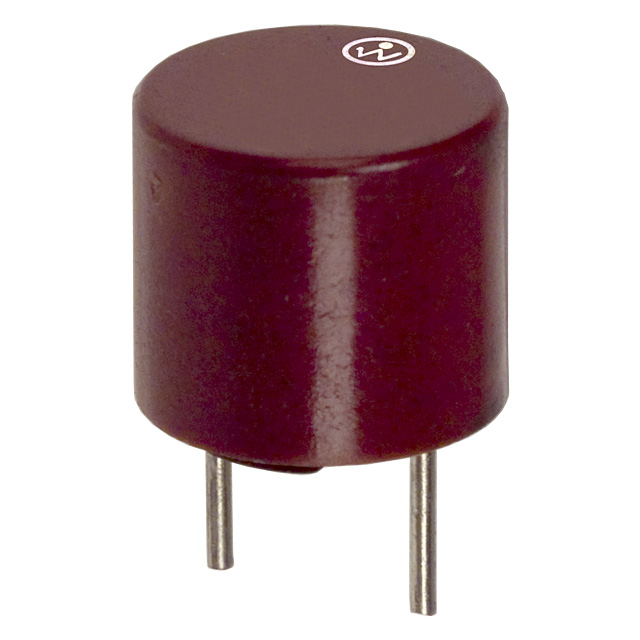

| Description: | FUSE BOARD MNT 80MA 250VAC RAD |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | Radial, Can, Vertical |
| Size / Dimension | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Response Time | Slow Blow |
| Approval Agency | CSA, cULus |
| DC Cold Resistance | 5.85 Ohms |
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating (Amps) | 80 mA |
| Voltage Rating - AC | 250 V |
| Melting I²t | 0.014 |
|
