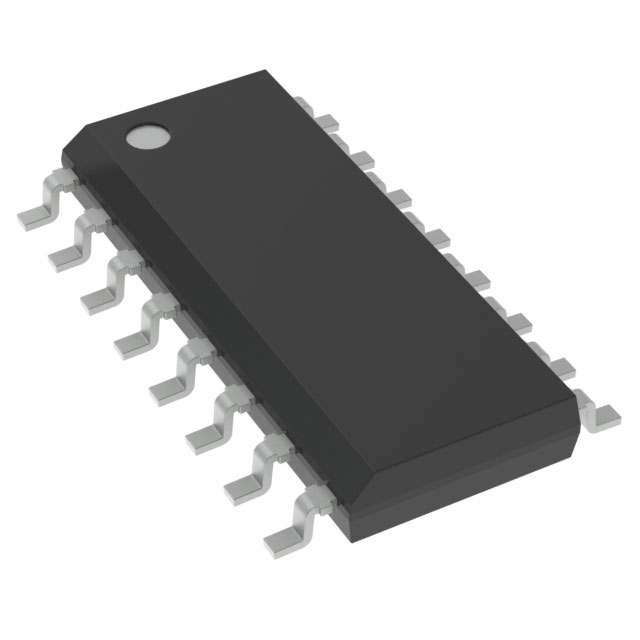

| Part number: | M74HCT4053RM13TR |
| Description: | IC SWITCH SPDT X 3 120OHM 16SO |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 120Ohm |
| -3db Bandwidth | 190MHz |
| Supplier Device Package | 16-SO |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±1V ~ 6V |
| Crosstalk | -50dB @ 1MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 5Ohm |
| Switch Time (Ton, Toff) (Max) | 34ns, 31ns |
| Channel Capacitance (CS(off), CD(off)) | 0.75pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Number of Circuits | 3 |
|
