| Part number: | STGP12NB60KD |
| Description: | IGBT 600V 30A 125W TO220 |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |

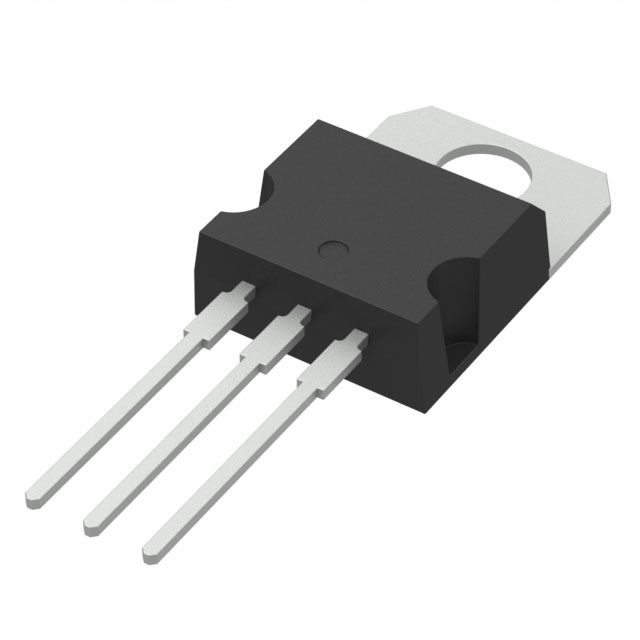

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 80 ns |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 12A |
| Supplier Device Package | TO-220 |
| Td (on/off) @ 25°C | 25ns/96ns |
| Switching Energy | 258µJ (off) |
| Test Condition | 480V, 12A, 10Ohm, 15V |
| Gate Charge | 54 nC |
| Current - Collector (Ic) (Max) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 60 A |
| Power - Max | 125 W |
|
