| Part number: | TN2540-600G |

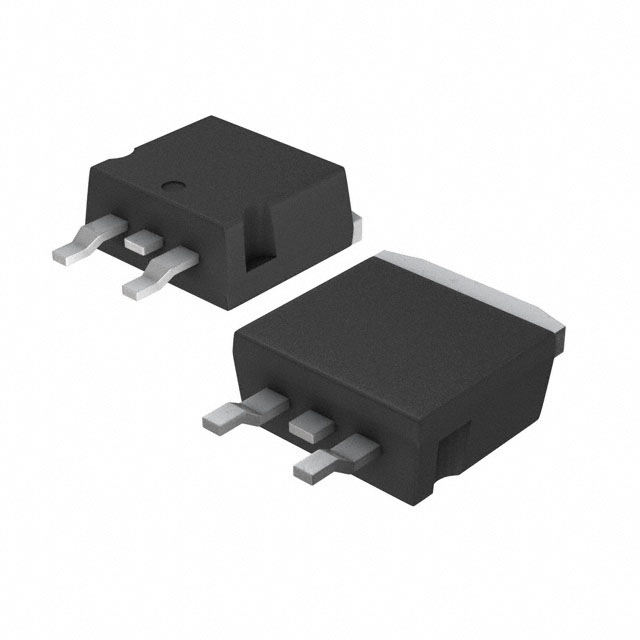

| Description: | SCR 600V 25A D2PAK |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Gate Trigger (Igt) (Max) | 40 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A, 314A |
| Current - On State (It (AV)) (Max) | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 5 µA |
| Supplier Device Package | D2PAK |
| Current - On State (It (RMS)) (Max) | 25 A |
| Voltage - Off State | 600 V |
|
