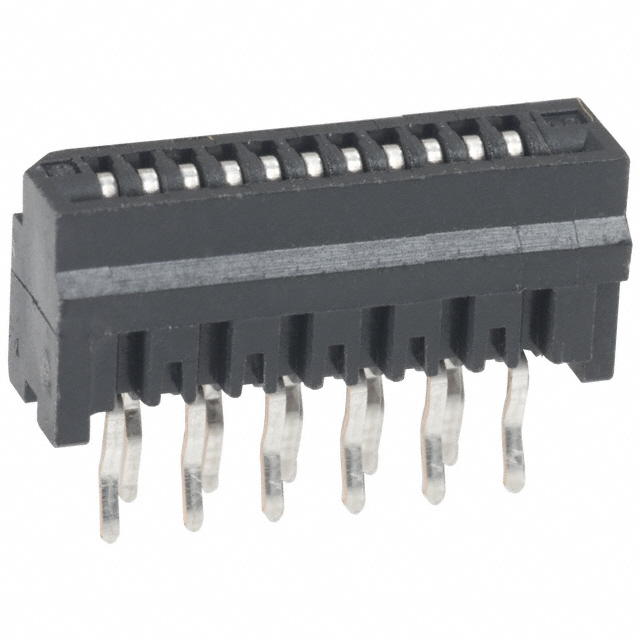

| Part number: | HLW11S-2C7LF |
| Description: | CONN FFC FPC VERT 11POS 1MM PCB |
| Manufacturer | Storage & Server IO (Amphenol Communications Solutions) |
| Encapsulation | Tray |
| Quantity | 190 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Storage & Server IO (Amphenol Communications Solutions)" |
| Contact Finish | Tin |
| Voltage Rating | 100V |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole |
| Number of Positions | 11 |
| Pitch | 0.039" (1.00mm) |
| Operating Temperature | -55°C ~ 85°C |
| Termination | Kinked Pin |
| Height Above Board | 0.232" (5.90mm) |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.33mm |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Housing Color | Black |
| Mating Cycles | 30 |
| Flat Flex Type | FFC, FPC |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
|
