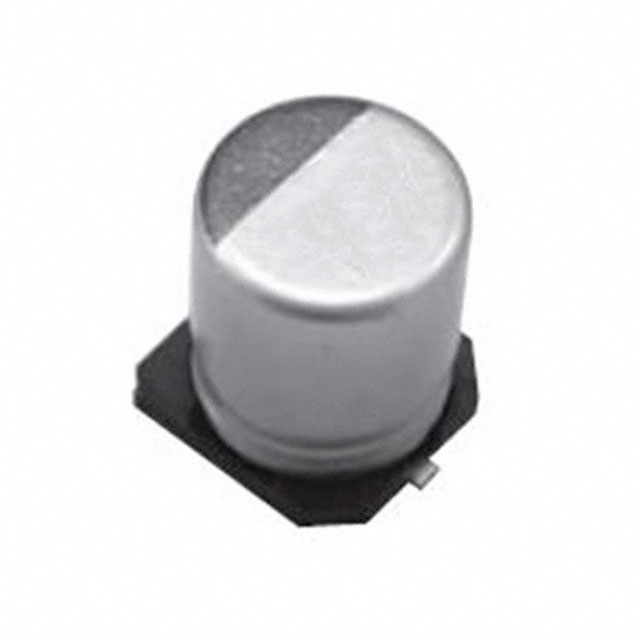

| Part number: | EMXB350ARA751MMH0S |
| Description: | CAP ALUM 750UF 20% 35V SMD |
| Manufacturer | United Chemi-Con |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 150 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Polarization | Polar |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C |
| Applications | Automotive |
| Ratings | AEC-Q200 |
| ESR (Equivalent Series Resistance) | 130mOhm @ 100kHz |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Capacitance | 750 µF |
| Voltage - Rated | 35 V |
| Ripple Current @ Low Frequency | 600 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
|
