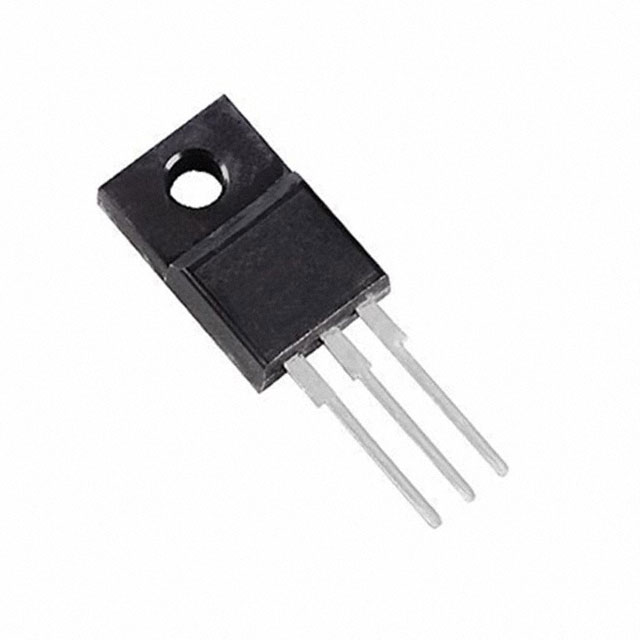

| Part number: | STF16N90K5 |
| Description: | MOSFET N-CH 900V 15A TO220FP |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
| Rds On (Max) @ Id, Vgs | 330mOhm @ 7.5A, 10V |
| Power Dissipation (Max) | 30W (Tc) |
| Vgs(th) (Max) @ Id | 5V @ 100µA |
| Supplier Device Package | TO-220FP |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 900 V |
| Gate Charge (Qg) (Max) @ Vgs | 29.7 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1027 pF @ 100 V |
|
