| Part number: | UC2845ADW/80976 |
| Description: | UC2845A CURRENT MODE PWM CONTROL |
| Manufacturer | Unitrode |
| Encapsulation | Bulk |
| Quantity | 198 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Unitrode" |

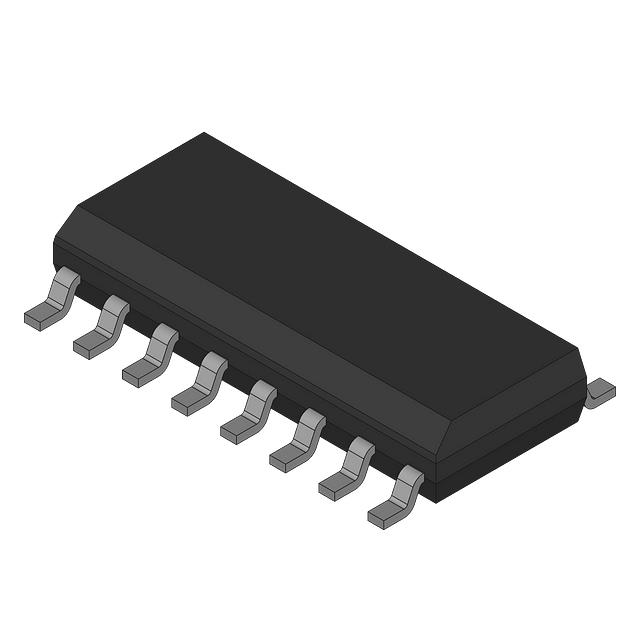

| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up, Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | Up to 500kHz |
| Topology | Boost, Buck, Flyback, Forward |
| Voltage - Supply (Vcc/Vdd) | 7.6V ~ 30V |
| Supplier Device Package | 16-SOIC |
| Synchronous Rectifier | No |
| Control Features | Frequency Control |
| Output Phases | 1 |
| Duty Cycle (Max) | 48% |
| Clock Sync | No |
| Number of Outputs | 1 |
|
