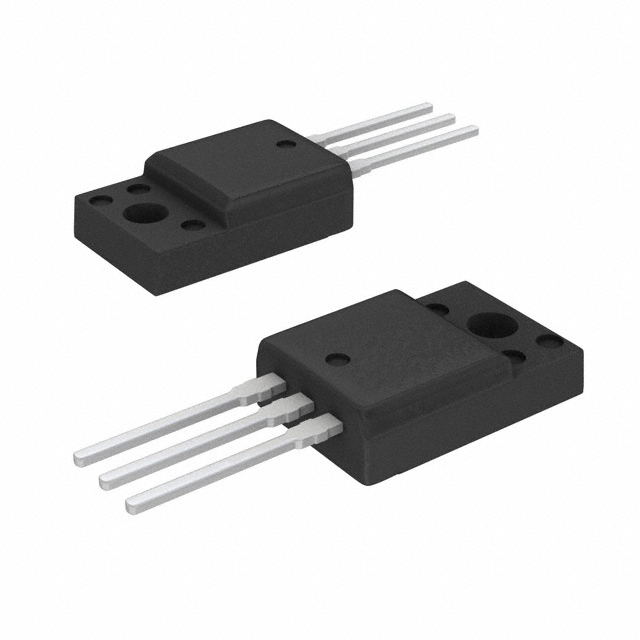

| Part number: | SGS10N60RUFTU |
| Description: | IGBT 600V 16A 55W TO220F |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 10A |
| Supplier Device Package | TO-220F-3 |
| Td (on/off) @ 25°C | 15ns/36ns |
| Switching Energy | 141µJ (on), 215µJ (off) |
| Test Condition | 300V, 10A, 20Ohm, 15V |
| Gate Charge | 30 nC |
| Current - Collector (Ic) (Max) | 16 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 30 A |
| Power - Max | 55 W |
|
