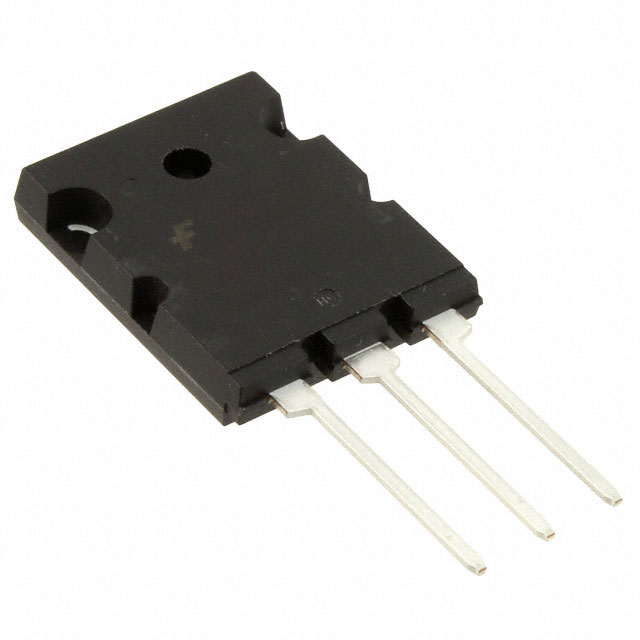

| Part number: | SGL5N150UFTU |
| Description: | IGBT 1500V 10A 125W TO264 |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 375 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | TO-264-3, TO-264AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 5.5V @ 10V, 5A |
| Supplier Device Package | TO-264-3 |
| Td (on/off) @ 25°C | 10ns/30ns |
| Switching Energy | 190µJ (on), 100µJ (off) |
| Test Condition | 600V, 5A, 10Ohm, 10V |
| Gate Charge | 30 nC |
| Current - Collector (Ic) (Max) | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 1500 V |
| Current - Collector Pulsed (Icm) | 20 A |
| Power - Max | 125 W |
|
