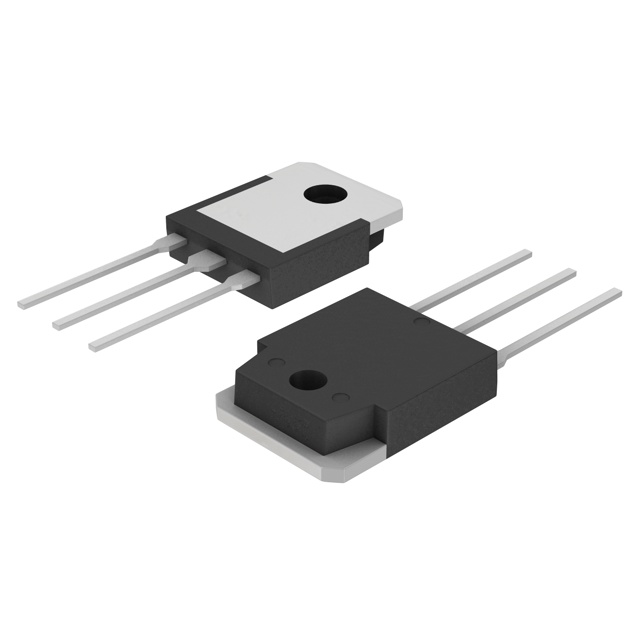

| Part number: | FGA25N120ANDTU |
| Description: | IGBT 1200V 40A 310W TO3P |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 450 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 350 ns |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 25A |
| Supplier Device Package | TO-3P |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 60ns/170ns |
| Switching Energy | 4.8mJ (on), 1mJ (off) |
| Test Condition | 600V, 25A, 10Ohm, 15V |
| Gate Charge | 200 nC |
| Current - Collector (Ic) (Max) | 40 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 75 A |
| Power - Max | 310 W |
|
