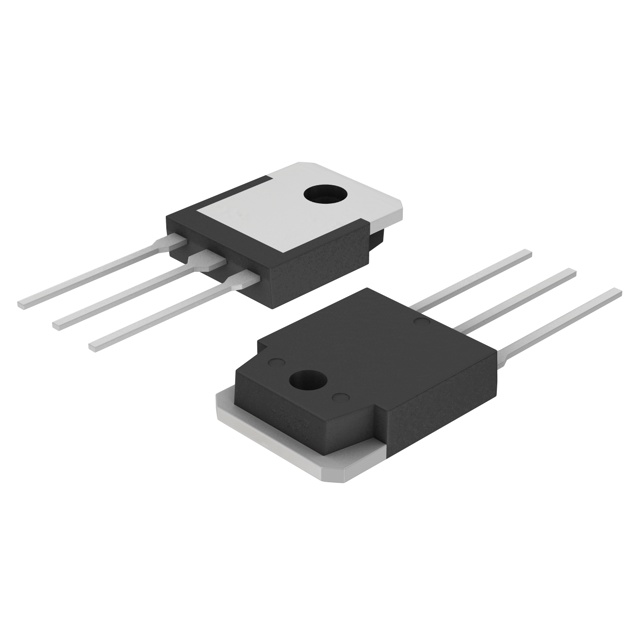

| Part number: | FGA50N60LS |
| Description: | IGBT 600V 100A 240W TO3P |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 450 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 50A |
| Supplier Device Package | TO-3P |
| Td (on/off) @ 25°C | 54ns/146ns |
| Switching Energy | 1.1mJ (on), 3.2mJ (off) |
| Test Condition | 300V, 50A, 5.9Ohm, 15V |
| Gate Charge | 167 nC |
| Current - Collector (Ic) (Max) | 100 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 150 A |
| Power - Max | 240 W |
|
