| Part number: | HGTG18N120BND |
| Description: | IGBT 1200V 54A 390W TO247 |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 450 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |

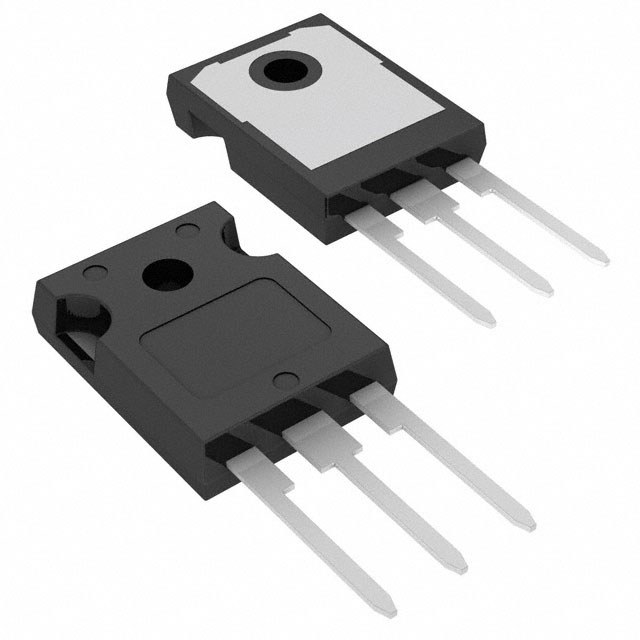

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 75 ns |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 18A |
| Supplier Device Package | TO-247-3 |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 23ns/170ns |
| Switching Energy | 1.9mJ (on), 1.8mJ (off) |
| Test Condition | 960V, 18A, 3Ohm, 15V |
| Gate Charge | 165 nC |
| Current - Collector (Ic) (Max) | 54 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 160 A |
| Power - Max | 390 W |
|
