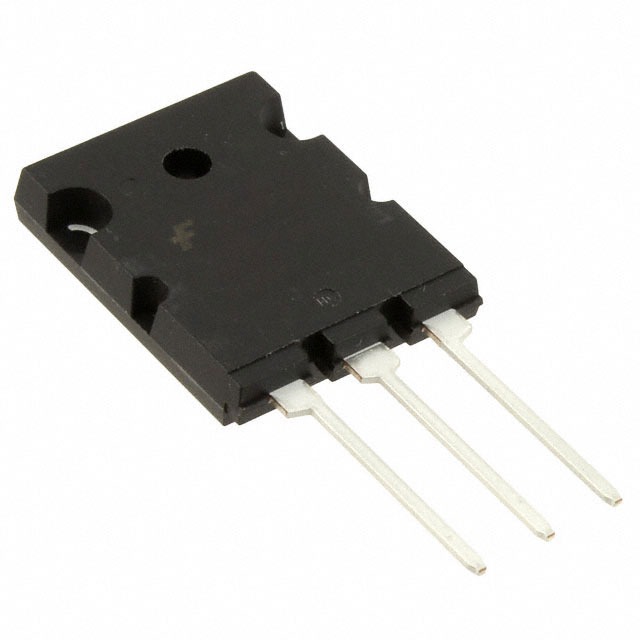

| Part number: | SGL40N150DTU |
| Description: | IGBT 1500V 40A 200W TO264 |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | TO-264-3, TO-264AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 300 ns |
| Vce(on) (Max) @ Vge, Ic | 4.7V @ 15V, 40A |
| Supplier Device Package | TO-264-3 |
| Gate Charge | 140 nC |
| Current - Collector (Ic) (Max) | 40 A |
| Voltage - Collector Emitter Breakdown (Max) | 1500 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 200 W |
|
