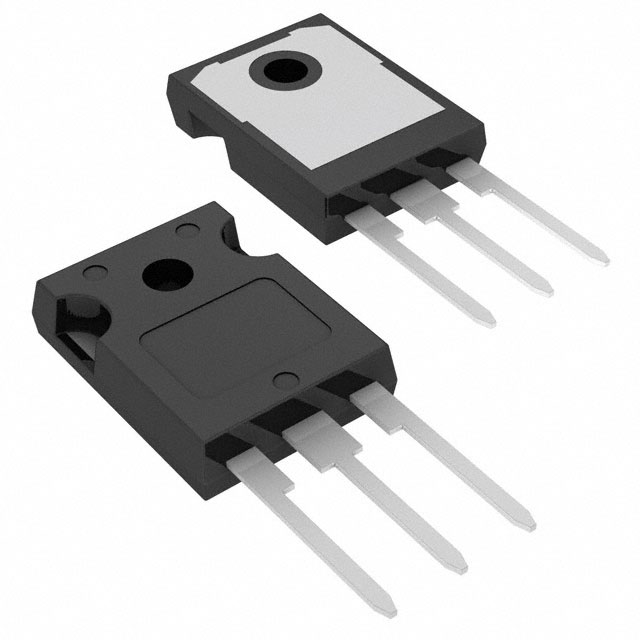

| Part number: | HGTG20N60C3D |
| Description: | IGBT 600V 45A 164W TO247 |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 300 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 55 ns |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 20A |
| Supplier Device Package | TO-247-3 |
| Td (on/off) @ 25°C | 28ns/151ns |
| Switching Energy | 500µJ (on), 500µJ (off) |
| Test Condition | 480V, 20A, 10Ohm, 15V |
| Gate Charge | 91 nC |
| Current - Collector (Ic) (Max) | 45 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 300 A |
| Power - Max | 164 W |
|
