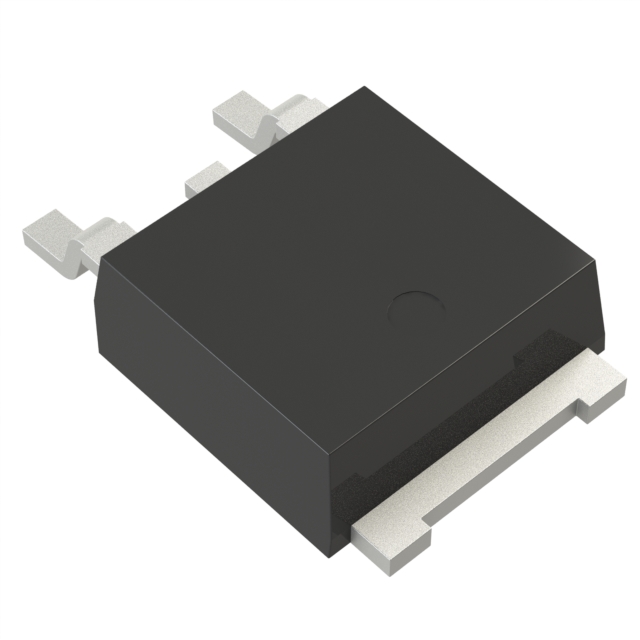

| Part number: | SE60PWGCHM3/I |
| Description: | DIODE GEN PURP 400V 3A SLIMDPAK |
| Manufacturer | Vishay General Semiconductor – Diodes Division |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay General Semiconductor – Diodes Division" |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.2 µs |
| Technology | Standard |
| Capacitance @ Vr, F | 22pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 3A |
| Supplier Device Package | SlimDPAK |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Qualification | AEC-Q101 |
|
