| Part number: | LST1-01H06-LME1-01 |

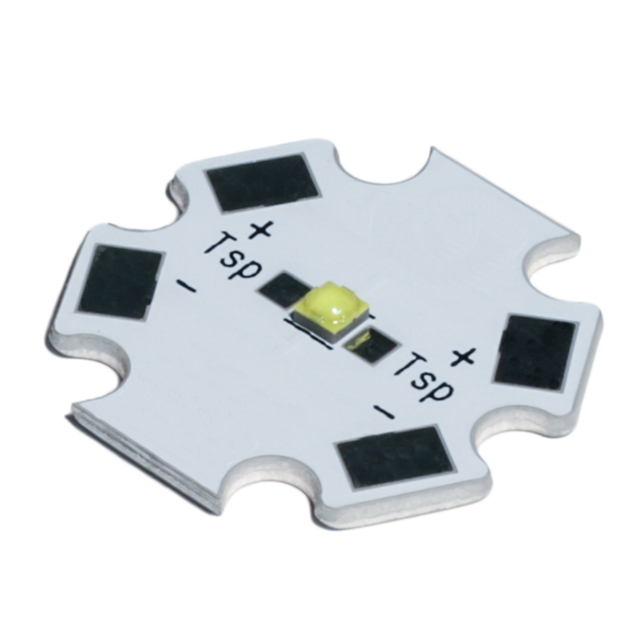

| Description: | LED MOD LUXEON C LIME STARBRD |
| Manufacturer | New Energy |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "New Energy" |
| Color | Lime |
| Size / Dimension | 19.89mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 2.75V |
| Height | 3.05mm |
| Current - Test | 350mA |
| Viewing Angle | 145° |
| Lens Type | Domed |
| Current - Max | 1.23A |
| Lumens/Watt @ Current - Test | 135 lm/W |
| Temperature - Test | 85°C |
|
