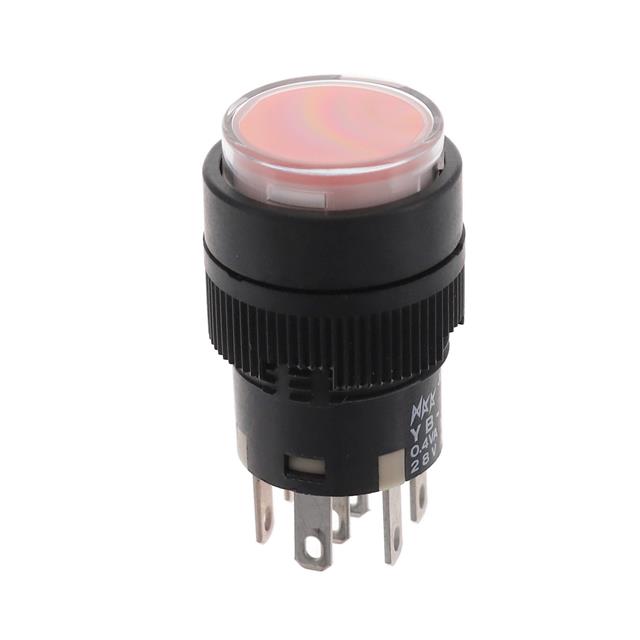

| Part number: | YB26CKG01-5C-JC |
| Description: | SWITCH PB INCAND LED |
| Manufacturer | NKK Switches |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "NKK Switches" |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Mounting Type | Panel Mount, Front |
| Circuit | DPDT |
| Type | Standard, Illuminated |
| Switch Function | On-On |
| Operating Temperature | -25°C ~ 50°C |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Illumination Type, Color | LED, Red |
| Illumination Voltage (Nominal) | 1.9 VDC |
| Actuator Type | Round, Button |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Color - Actuator/Cap | Clear (Red Filter/Diffuser) |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
|
