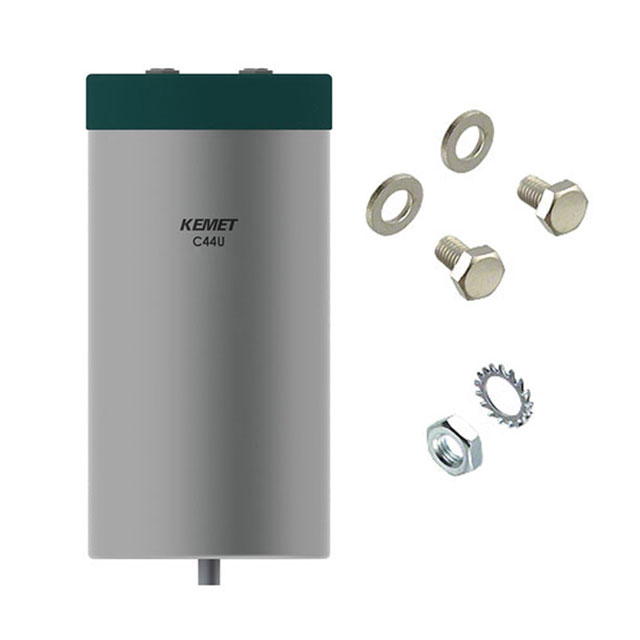

| Part number: | C44UQGT7110M53K |
| Description: | CAP FILM 1100UF 10% 1.1KVDC RAD |
| Manufacturer | TOKIN (KEMET) |
| Encapsulation | Bulk |
| Quantity | 4 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKIN (KEMET)" |
| Tolerance | ±10% |
| Package / Case | Radial, Can |
| Mounting Type | Chassis, Stud Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | DC Link, DC Filtering |
| Lead Spacing | 1.969" (50.00mm) |
| Termination | Threaded, Female |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 1100V (1.1kV) |
| Height - Seated (Max) | 9.370" (238.00mm) |
| Capacitance | 1100 µF |
| ESR (Equivalent Series Resistance) | 1.4 mOhms |
| Size / Dimension | 4.567" Dia (116.00mm) |
|
