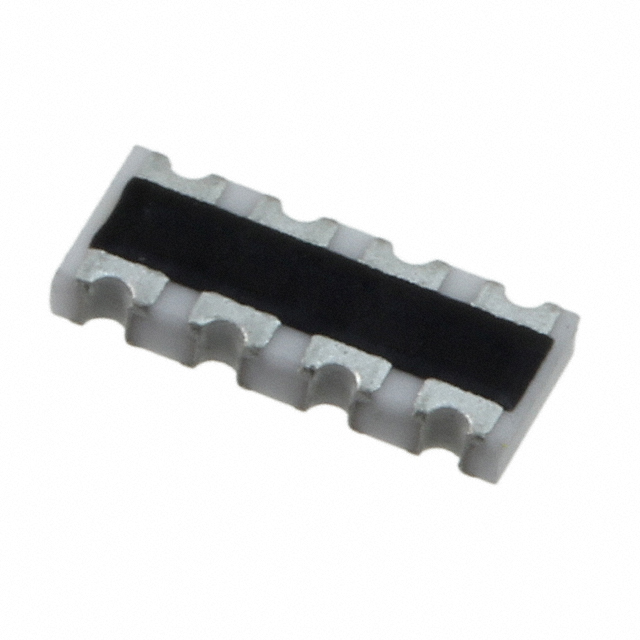

| Part number: | EXB-S8V392J |
| Description: | RES ARRAY |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Resistance (Ohms) | 3.9k |
| Tolerance | ±5% |
| Power Per Element | 100mW |
| Circuit Type | Isolated |
| Number of Pins | 8 |
| Package / Case | 2009, Concave, Long Side Terminals |
| Temperature Coefficient | ±200ppm/°C |
| Size / Dimension | 0.200" L x 0.087" W (5.08mm x 2.20mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 2009 |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Number of Resistors | 4 |
|
