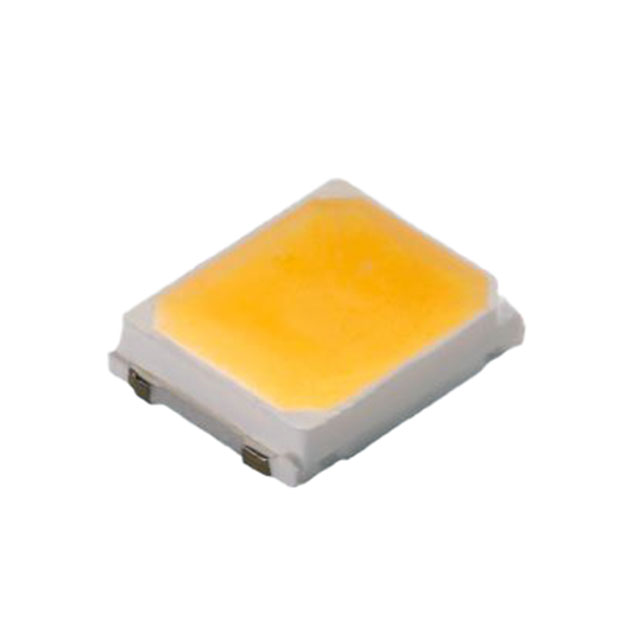

| Part number: | JE2835BWT-P-U35GA0000-N0000001 |
| Description: | LED J WARM WHT 3500K 1411 |
| Manufacturer | Cree LED |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Cree LED" |
| Package / Case | 1411 (3528 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.04V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 240mA |
| Supplier Device Package | 1411 |
| Lumens/Watt @ Current - Test | 138 lm/W |
| Height - Seated (Max) | 0.031" (0.80mm) |
| CCT (K) | 3500K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Flux @ 25°C, Current - Test | 63lm (Typ) |
| Flux @ 85°C, Current - Test | 56lm (Typ) |
| Thermal Resistance of Package | 23°C/W |
|
