| Part number: | LMLP03B3M330CTAR |

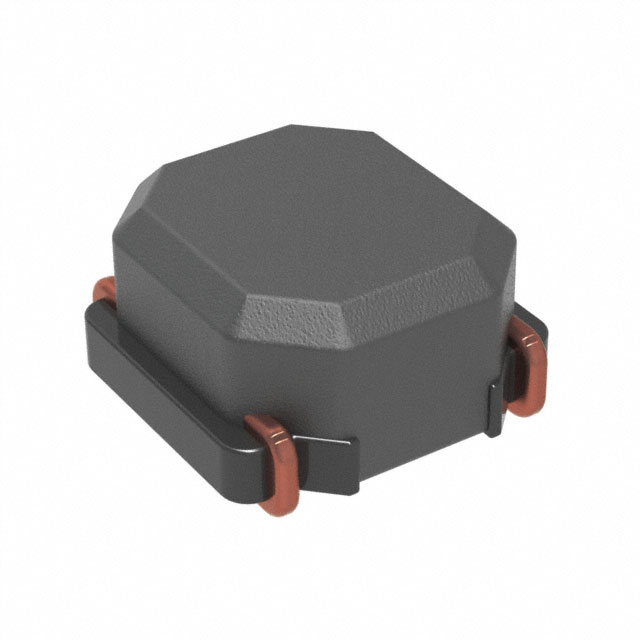

| Description: | FIXED IND 33UH 370MA 840MOHM SMD |
| Manufacturer | KYOCERA AVX |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "KYOCERA AVX" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 840mOhm |
| Current - Saturation (Isat) | 390mA |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Inductance | 33 µH |
| Current Rating (Amps) | 370 mA |
|
