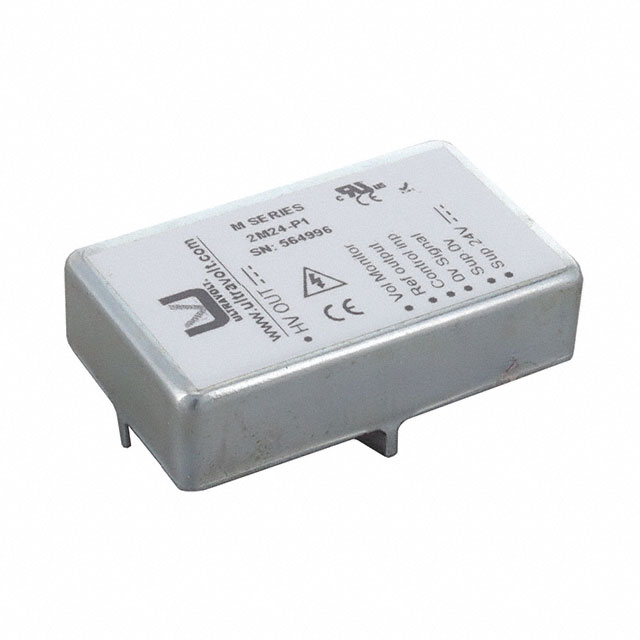

| Part number: | 2M24-P1 |
| Description: | M-SERIES DC TO HVDC CONVERTER, S |
| Manufacturer | ULTRAVOLT / Advanced Energy |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ULTRAVOLT / Advanced Energy" |
| Features | Adjustable Output, Remote On/Off |
| Package / Case | 9-SIP Module, 7 Leads |
| Size / Dimension | 1.85" L x 1.10" W x 0.49" H (47.0mm x 28.0mm x 12.5mm) |
| Mounting Type | Through Hole |
| Type | High Voltage - Non-Isolated Module |
| Operating Temperature | -10°C ~ 65°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 24V |
| Approval Agency | CE, cUL, cURus, UL |
| Current - Output (Max) | 500µA |
| Voltage - Output 1 | 0 ~ 2000V |
| Power (Watts) | 1 W |
| Number of Outputs | 1 |
| Standard Number | 60950-1 |
|
