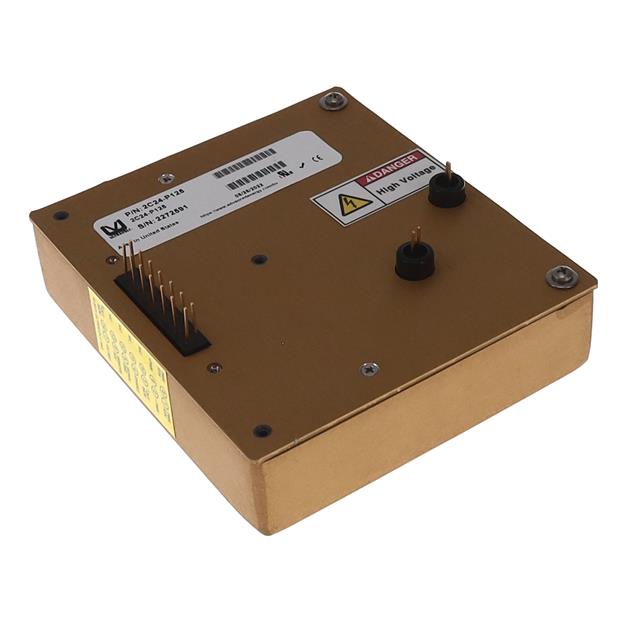

| Part number: | 2C24-P125 |
| Description: | DC/DC CONVERTER |
| Manufacturer | ULTRAVOLT / Advanced Energy |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ULTRAVOLT / Advanced Energy" |
| Features | Adjustable Output, Remote On/Off |
| Package / Case | Module |
| Size / Dimension | 4.50" L x 4.00" W x 1.06" H (114.3mm x 101.6mm x 27.0mm) |
| Mounting Type | Through Hole |
| Type | High Voltage - Non-Isolated Module |
| Operating Temperature | -40°C ~ 65°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 30V |
| Approval Agency | CE, cUL, cURus, UL |
| Current - Output (Max) | 62mA |
| Voltage - Input (Min) | 23V |
| Voltage - Output 1 | 0 ~ 2000V |
| Control Features | Enable, Active High |
| Power (Watts) | 124 W |
| Number of Outputs | 1 |
| Standard Number | 60950-1 |
|
