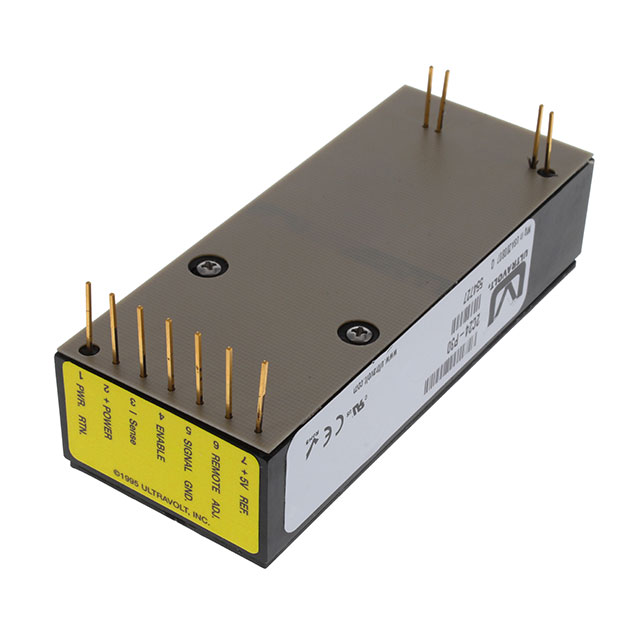

| Part number: | 6C24-N20-H |
| Description: | C-SERIES DC TO HVDC CONVERTER, S |
| Manufacturer | ULTRAVOLT / Advanced Energy |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ULTRAVOLT / Advanced Energy" |
| Features | Heat Sink |
| Package / Case | 11-DIP Module |
| Size / Dimension | 3.70" L x 1.50" W x 1.23" H (94.0mm x 38.1mm x 31.3mm) |
| Mounting Type | Through Hole |
| Type | High Voltage - Non-Isolated Module |
| Operating Temperature | -40°C ~ 65°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 30V |
| Approval Agency | CE, cURus |
| Current - Output (Max) | 3.3mA |
| Voltage - Input (Min) | 23V |
| Voltage - Output 1 | -6000V |
| Control Features | Enable, Active High |
| Power (Watts) | 20 W |
| Number of Outputs | 1 |
|
