| Part number: | 6D24-P4 |

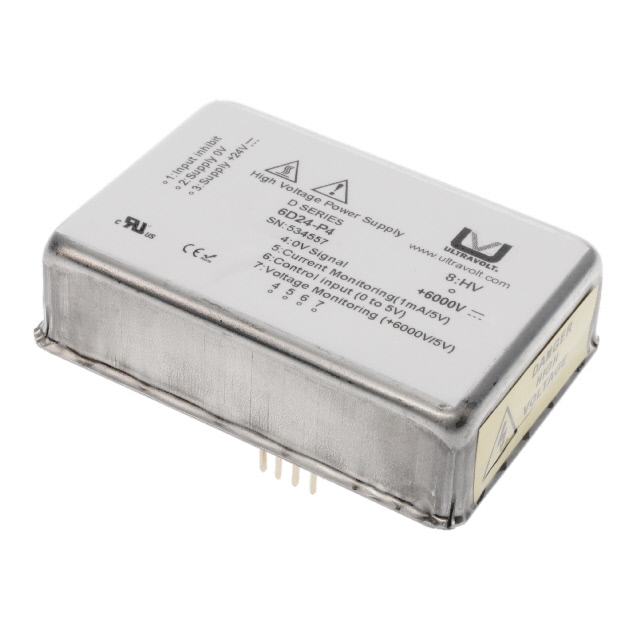

| Description: | D-SERIES DC TO HVDC CONVERTER, S |
| Manufacturer | ULTRAVOLT / Advanced Energy |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ULTRAVOLT / Advanced Energy" |
| Features | Adjustable Output, Remote On/Off |
| Package / Case | 8-DIP Module |
| Size / Dimension | 2.50" L x 1.73" W x 0.69" H (63.5mm x 44.0mm x 17.5mm) |
| Mounting Type | Through Hole |
| Type | High Voltage - Non-Isolated Module |
| Operating Temperature | -10°C ~ 65°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 26V |
| Current - Output (Max) | 670µA |
| Voltage - Input (Min) | 22V |
| Voltage - Output 1 | 0 ~ 6000V |
| Power (Watts) | 4 W |
| Number of Outputs | 1 |
|
