| Part number: | SMQ250VS102M30X35T2 |

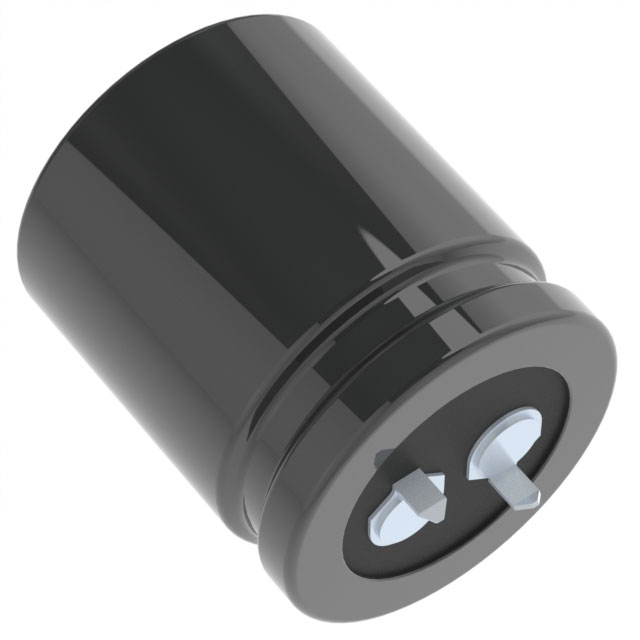

| Description: | CAP ALUM 1000UF 20% 250V SNAP |
| Manufacturer | United Chemi-Con |
| Encapsulation | Tray |
| Quantity | 200 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| ESR (Equivalent Series Resistance) | 249mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Capacitance | 1000 µF |
| Voltage - Rated | 250 V |
| Ripple Current @ Low Frequency | 3.32 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.98 A @ 50 kHz |
|
