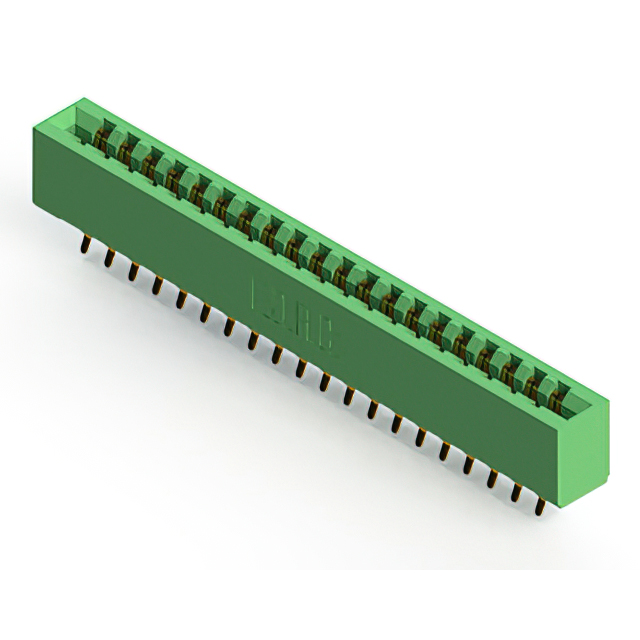

| Part number: | 305-040-556-201 |
| Description: | CONN EDGE DUAL FMALE 40POS 0.156 |
| Manufacturer | EDAC Inc. |
| Encapsulation | Box |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "EDAC Inc." |
| Features | Card Extender |
| Gender | Female |
| Contact Finish | Gold |
| Color | Green |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 40 |
| Pitch | 0.156" (3.96mm) |
| Operating Temperature | -40°C ~ 105°C |
| Read Out | Dual |
| Contact Type | Semi Bellows |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
| Termination | Solder |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Material - Insulation | Polyester Thermoplastic |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | 20 |
| Number of Rows | 2 |
| Termination Rows | 2 |
|
