Part number: | 345-022-524-858 |

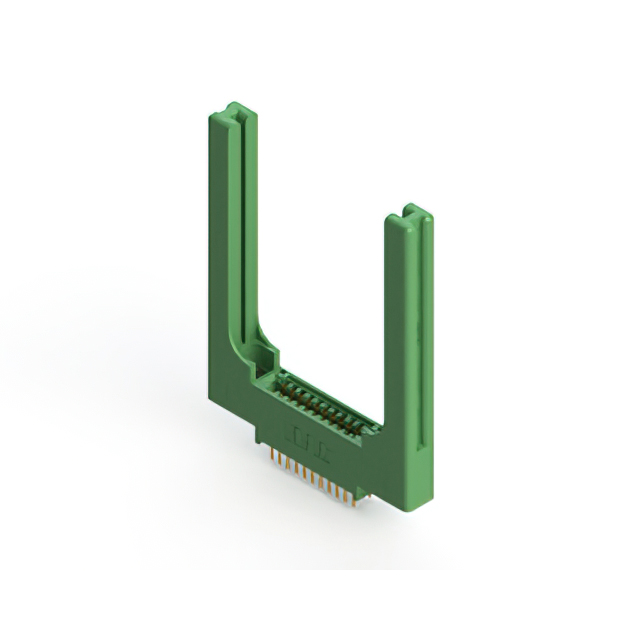

Description: | CONN EDGE DUAL FMALE 22POS 0.100 |
Manufacturer | EDAC Inc. |
Encapsulation | Box |
Quantity | 25 |
RoHS | 1 |
TYPE | DESCRIPTION |
Mfr | "EDAC Inc." |
Features | Card Guides |
Gender | Female |
Contact Finish | Gold |
Color | Green |
Mounting Type | Through Hole |
Number of Positions | 22 |
Pitch | 0.100" (2.54mm) |
Operating Temperature | -40°C ~ 105°C |
Read Out | Dual |
Contact Type | Cantilever |
Card Type | Non Specified - Dual Edge |
Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
Flange Feature | Top Mount Opening, Threaded Insert, 4-40 |
Termination | Solder |
Contact Finish Thickness | 10.0µin (0.25µm) |
Material - Insulation | Polyester Thermoplastic |
Contact Material | Copper Alloy |
Number of Positions/Bay/Row | 11 |
Number of Rows | 2 |
Termination Rows | 2 |
