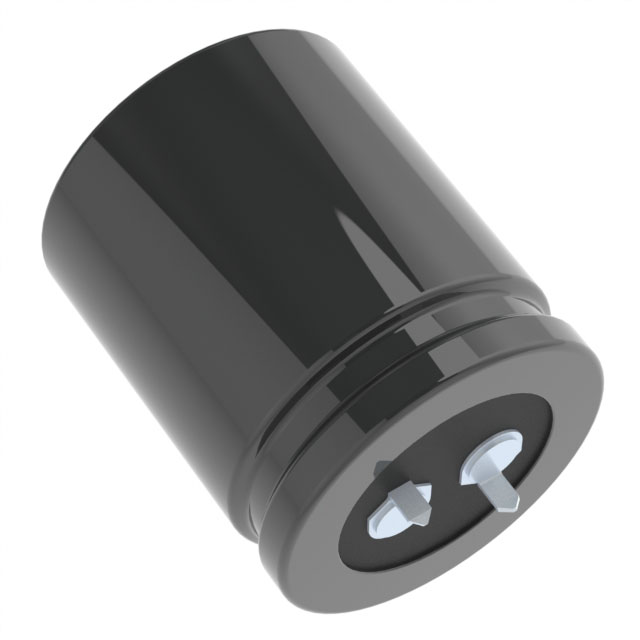

| Part number: | KMQ450VS391M35X40T2 |
| Description: | CAP ALUM 390UF 20% 450V SNAP |
| Manufacturer | United Chemi-Con |
| Encapsulation | Tray |
| Quantity | 200 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| ESR (Equivalent Series Resistance) | 850mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Capacitance | 390 µF |
| Voltage - Rated | 450 V |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2165 A @ 50 kHz |
|
