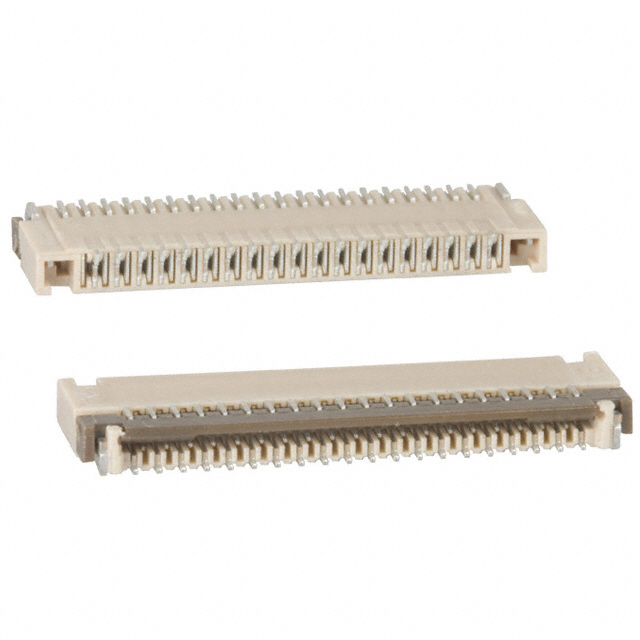

| Part number: | 0548093998 |
| Description: | CONN FPC BOTTOM 39POS 0.3MM R/A |
| Manufacturer | Molex |
| Encapsulation | Bulk |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Molex" |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Contact Finish | Tin Bismuth |
| Voltage Rating | 50V |
| Current Rating (Amps) | 0.3A |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 39 |
| Pitch | 0.012" (0.30mm) |
| Operating Temperature | -20°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.051" (1.30mm) |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.20mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Tapered |
| Mating Cycles | 20 |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Bottom |
|
