| Part number: | 0545481670 |

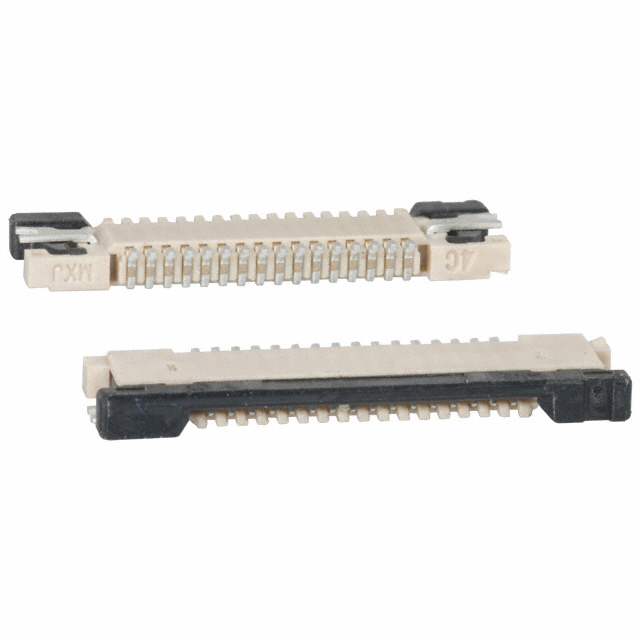

| Description: | CONN FFC BOTTOM 16POS 0.5MM R/A |
| Manufacturer | Molex |
| Encapsulation | Bulk |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Molex" |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Contact Finish | Tin Bismuth |
| Voltage Rating | 50V |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 16 |
| Pitch | 0.020" (0.50mm) |
| Operating Temperature | -20°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.047" (1.20mm) |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Straight, Tapered |
| Flat Flex Type | FFC, FPC |
| Connector/Contact Type | Contacts, Bottom |
|
